Max. Capacity : 500 kg/h
Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Home Use, Food & Beverage Shops
Showroom Location : None
Condition : New
Place of Origin : China
Brand Name : UT
Type : Feed Pellet Machine
Voltage : 220V/380V
Dimension(L*W*H) : 78*38*63 cm
Weight : 100 kg
Warranty : 12 Months
Key Selling Points : High Productivity
Marketing Type : Hot Product 2021
Machinery Test Report : Provided
Video outgoing-inspection : Provided
Warranty of core components : 2 years
Core Components : Other, PLC, Bearing
Name : Feed Pellet machine
Performance : Stable
Keywords : Pallet Feed Machine fish food making machine
Quality : High Qualtiy
Raw material : Rice Bran
Application : Make Animal Feed
Color : Customers' Request
Capacity : 300-500kg/h
Advantage : High Capacity High Efficient
Usage : Animal Poultry Livestock Pellet Making Machine
Packaging Details : wooden box
Port : QINGDAO PORT, TIANJIN PORT, SHANGHAI PORT, NINGBO PORT
Supply Ability : 100 Set/Sets per Week
Price : Negotiation
MOQ : 1
motor : 220v/380v/415v/customzied
color : customzied

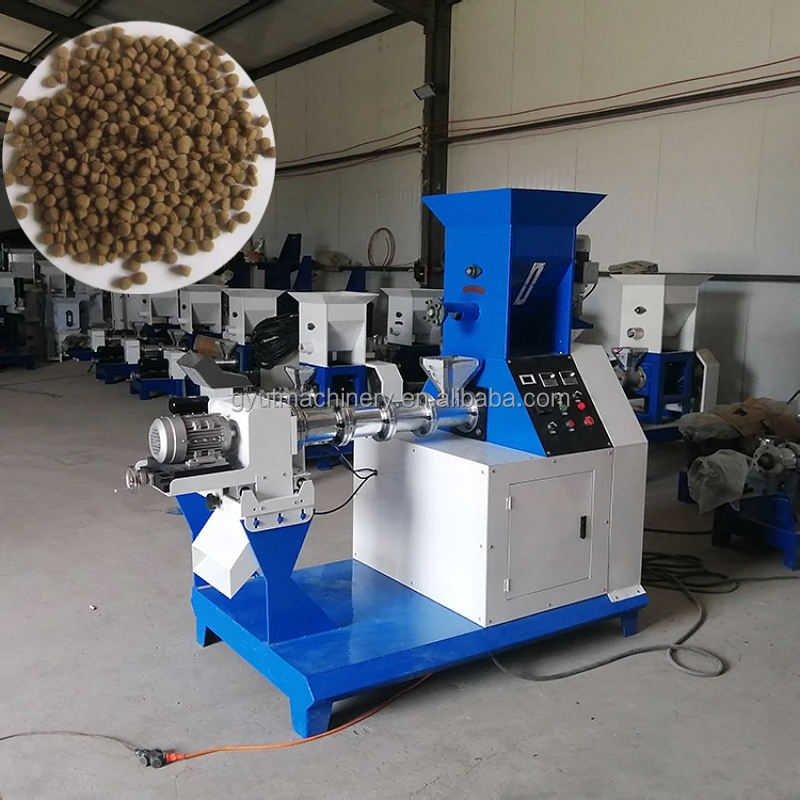

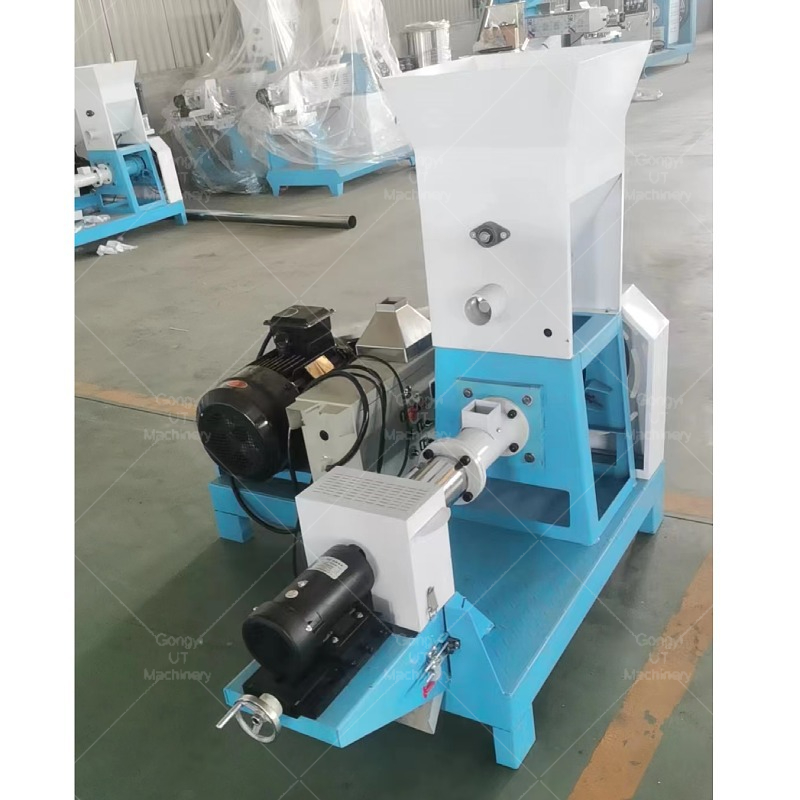

Sinking Floating Fish Feed Processing Line including Grinder Mixer Extruder Dryer Oil Sprayer
The application of Floating fish feed extruder machine:
1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc can be produced.
2.The finished pellets can keep floating for 3-15 hours without pollution to water.
3.The floating time can be controlled by the puffing degree adjustment.
4.Floating fish feed machine can make pellet from diameter.1.0mm-20mm just by changing the mold.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.
8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
Advantages of the machine:
(1).Raw material: corn flour , wheat flour , soybean powder , other feed material
(2).Moisture : <12%
(3).Pellet diameter: 2-12mm one machine can produce different diameter of pellet by changing the molds.
Parameters
Model | Capacity (kg/h) | Motor(kw) | Feeding motor (kw) | Screw Diameter (mm) | Cutting motor (kw) |
UT-40 | 40-50 | 5.5 | 0.4 | Φ40 | 0.4 |
UT-50 | 60-80 | 11 | 0.4 | Φ50 | 0.4 |
UT-60 | 110-130 | 15 | 0.4 | φ60 | 0.4 |
UT-70 | 180-210 | 18.5 | 0.4 | φ70 | 0.4 |
UT-80 | 200-250 | 22 | 0.4 | φ80 | 1.1 |
UT-90 | 300-350 | 37 | 0.6 | Φ90 | 0.8 |
UT-120 | 500-600 | 55 | 1.1 | φ120 | 2.2 |
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
